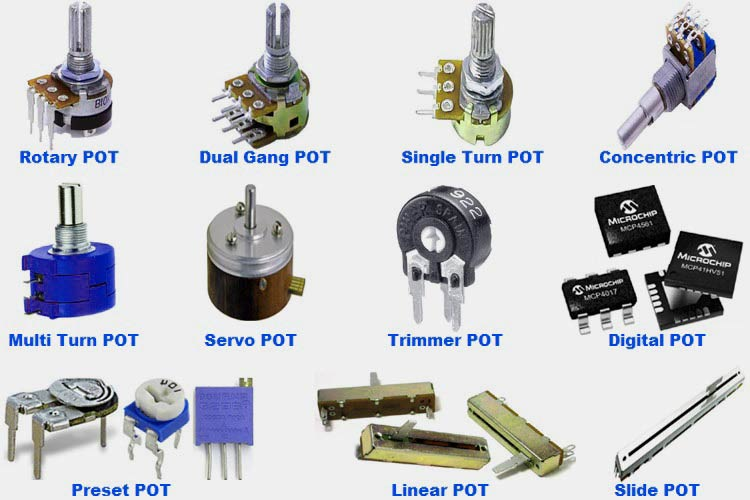

There are several types of potentiometers available in the market and Trimmer potentiometer is one type. First let us look at the list of potentiometers and then we will have a look at the connectivity of trimmer potentiometer.
The below potentiometer is called a trimmer potentiometer.
Potentiometer symbol is as below.
One end of the potentiomter (PIN-1) to be connected to Supply and other end of the potentiometer (PIN-3) to be connected to Ground. PIN-2 is the output voltage which varies as pot is varied and can be connected to the circuit as required. Based on this, below is the connectivity diagram for the trimmer potentiometer.
PIN#1 = Supply
PIN#2 = Output
PIN#3 = Ground
]]>
